How to directly insert images, illustrations, and figures into a Paratext project from a searchable database


The SIL Repository provides over 2800 black and white or color illustrations. Finding the best image among so many can be a challenge. However, it is now possible to do an image search from within Paratext, searching by chapter reference or by keyword in multiple languages. Here's how:


Download and Unzip Image Files and Folders

  1. Visit the official SIL Sample Illustration Repository (hosted in Dropbox).
  2. Alternatively, you can check out the experimental space for sample illustrations at tiny.cc/sampleimages. This contains beta versions of the color images, and beta versions with keywords in other major languages. It's hosted on Google Drive.
  3. If using the official repository site:
    1. Download the folders that you want to use directly to a folder on your computer
      OR
    2. Download the folders that you want to use directly to your Dropbox
  4. If using the experimental Google Drive site:
    1. Either browse within the appropriate language folder for the sets of images you want, and download those OR​​​​
    2. Download all images by right-clicking on the language folder and selecting Download.
    3. Alternatively, you can add the relevant folder to your own Google Drive folder, and sync that to your local drive using Google File Stream (on corporate accounts) or Google Backup & Sync (on personal accounts)
  5. Note that these are low-resolution watermarked images.
    1. In all cases except for WBT image sets licensed under CC, the full-resolution originals are available only for bona fide typesetters, who will automatically substitute them for your sample images at typesetting time.
  6. Unzip this collection to a folder within your Pictures folder.
    1. This will ensure that the images are included in Windows’ search index.
    2. If you’d rather store these files in another location, add that folder to Windows’ search indexing. Here’s how to add it.

Find and Insert Images in Paratext

  1. In Paratext, position the cursor in the passage where you want to insert a picture.
  2. Go to the Project menu > Insert > Figure...

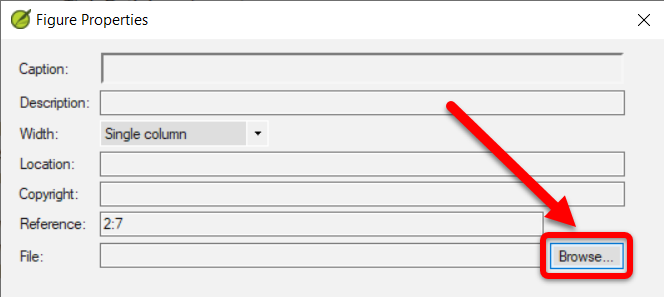

  3. Click the Browse button:

    Figure Properties Browse Button


  4. Navigate to the folder where you unzipped your collection.

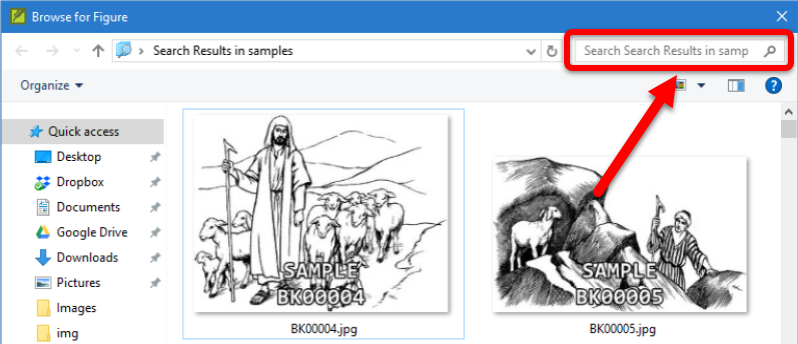

  5. Click in the SEARCH box in the top right corner:
    Search For Image
  6. Enter one or more terms to search for.
    1. For example: baptism or dove:
      Search For Image Dove


  7. There are a number of search terms/filters you can use:
    Search Term/Filter Description Example(s)
    {keyword} Search for an image by keyword. dove
    baptism
    altar
    Bible book Search for a book using the 3-letter Paratext book code. GEN
    MRK
    LUK
    Chapter reference Search for a chapter using the 3-letter book code plus the 2-digit chapter number. GEN03
    MRK01
    JHN10
    OR search OR will include images with any of the search terms.
    Example: Find images of a sheep or lamb
    sheep OR lamb
    digital

    digital will include images with permission to use in a Scripture app.
    Example: Find images of a lamb that can be used in a Scripture app

    sheep digital

    minus {term} Using the minus sign in front of a term will exclude the term from the search.
    Example: Find images of a sheep that are NOT pictures of a lamb
    sheep -lamb
    color The color keyword will include color images (excluding black and white images).
    Example: Find color images of a sheep
    sheep color
    black

    The black keyword will include black and white images (excluding color images).
    Example: Find black and white images of a sheep

    sheep black
  8. You can also combine these filters with parenthesis and additional terms.
    1. For example: Find images of sheep or lambs that can be used in a Scripture app: (lamb OR sheep) digital

Adjust Display Settings

  1. Typically, the first time you do a search, you'll need to adjust the display settings for the results.
  2. If your search results are not displayed with extra large icons:
    1. In the upper-right corner, click the drop-down arrow to open the view options:
      Drop Down More Options
    2. Select “Extra large icons”:


  3. Optional View Settings:
    1. To make space for even more images, you may want to hide the navigation pane: go to Organize > Layout and uncheck Navigation pane.
    2. You can resize this window to fit more images by dragging a corner or edge, or by double-clicking on the title bar to maximize it.
  4. Double-click on an image from the search results to select it.
  5. Enter a Caption:
    Enter A Caption

  6. Best Practice: If you only want this illustration to be used in print publications or you don't expect to receive permission to use it in app or Web, enter “p” for Location.
    1. See How to tell Paratext which images are for print and which are for electronic outputs.
  7. Click OK.





Regarding Translating the Keywords into Languages of Wider Communication

Note that in many cases, Google Translate gets thrown off by the English wording. Titles in English often omit the articles (a/an/the) and use a present participle verb without the context of a complete sentence; Google Translate does poorly with such wording, so we are tidying up the English first to get Google's best translation. Then there are issues of Google Translate's skewing due to its training corpus: It wants to translate ram into Hindi as the name of the god Ram; or bush into Swahili as the former president Bush. The A.I. folks have said they can refine the Google Translate result for us to focus it on Biblical vocabulary. Finally, after these steps are complete, we'll need mother-tongue speakers of each language to review the results and manually correct them where needed. Please let us know if you'd like to contribute to this effort.

We also need to determine which languages are worth supporting here. I just picked Hindi, Swahili, French and Spanish out of thin air without any real data on number of translation teams that would be relying on each. If you have any estimate of the number of current and projected translation projects that would need keywords in any language of wider communication, please give me your estimates. It needs to either be a language supported by Google Translate or one that you have a way to process for us. (Tok Pisin??)

Contact Den at [email protected].
